    Default Pumptec Plus contactor question

    I purchased a used unit and want to make sure it's wired correctly (from the control unit circuit board to the contactor ).

    Red wire is connected to front of contactor
    Black wire is connected to the back of contactor and to L1 on contactor
    White wire is connected to L2 on contactor

    Is this correct? I'll check back in a.m.
    Reply With Quote Reply With Quote
  2. 03-12-2008, 09:48 AM #2
    speedbump
    speedbump is offline
    Previous member
    Join Date
    Jul 2005
    Location
    Riverview, Fl.
    Posts
    4,540

    Default

    How about a diagram?

    bob...
    Reply With Quote Reply With Quote
  3. 03-12-2008, 12:33 PM #3
    xtorq12
    xtorq12 is offline
    DIY Junior Member xtorq12's Avatar
    Join Date
    Aug 2006
    Posts
    13

    Default

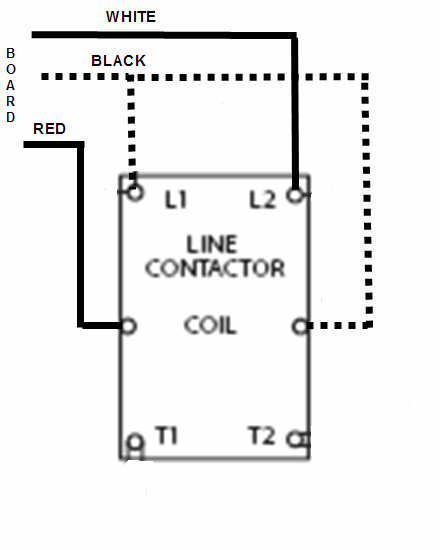

    Contactor diagram
    Attached Images Attached Images
    Reply With Quote Reply With Quote
  4. 03-12-2008, 06:09 PM #4
    speedbump
    speedbump is offline
    Previous member
    Join Date
    Jul 2005
    Location
    Riverview, Fl.
    Posts
    4,540

    Default

    Where does the Red come from?

    bob...
    Reply With Quote Reply With Quote
  5. 03-12-2008, 06:35 PM #5
    xtorq12
    xtorq12 is offline
    DIY Junior Member xtorq12's Avatar
    Join Date
    Aug 2006
    Posts
    13

    Default

    Quote Originally Posted by speedbump View Post
    Where does the Red come from?

    bob...
    All three wires come from the circuit board.
    Reply With Quote Reply With Quote
  6. 03-13-2008, 05:28 AM #6
    speedbump
    speedbump is offline
    Previous member
    Join Date
    Jul 2005
    Location
    Riverview, Fl.
    Posts
    4,540

    Default

    What circuit board? Are you referring to a control box? If so, the red wire does not belong where you have it shown. As a matter of fact the control box should be after the contactor not before it.

    bob...
    Reply With Quote Reply With Quote
  7. 03-13-2008, 06:26 AM #7
    thassler
    thassler is offline
    DIY Senior Member thassler's Avatar
    Join Date
    Dec 2006
    Location
    Tennessee
    Posts
    101

    Default

    Which Pumptec do you have?

    Pumptecs:
    http://www.franklin-electric.com/Cat...nglePhase.aspx

    Here's a user manual link for the standard Pumptec:
    http://www.franklin-electric.com/Cat.../pdf/M1502.pdf

    And the Pumptec Plus:
    http://www.franklin-electric.com/Cat.../pdf/M1413.pdf
    Reply With Quote Reply With Quote
  8. 03-13-2008, 06:47 AM #8
    thassler
    thassler is offline
    DIY Senior Member thassler's Avatar
    Join Date
    Dec 2006
    Location
    Tennessee
    Posts
    101

    Default

    Never mind, just saw that you have the Pumptec plus...
    Reply With Quote Reply With Quote
  9. 03-13-2008, 09:06 AM #9
    xtorq12
    xtorq12 is offline
    DIY Junior Member xtorq12's Avatar
    Join Date
    Aug 2006
    Posts
    13

    Default

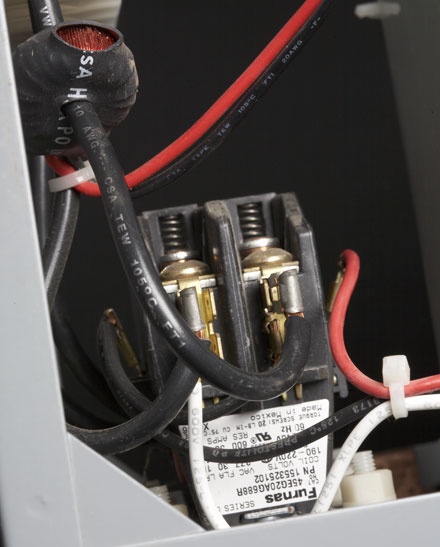

    Sorry, I should have been more clear. The red, white and black 18 AWG wires in the pic are what I am asking about. They come from the circuit board inside of the Pumptec Plus box and connect to the contactor inside of the Pumptec Plus box.
    Attached Images Attached Images
    Last edited by xtorq12; 03-13-2008 at 09:21 AM.
    Reply With Quote Reply With Quote
  10. 03-13-2008, 09:55 AM #10
    speedbump
    speedbump is offline
    Previous member
    Join Date
    Jul 2005
    Location
    Riverview, Fl.
    Posts
    4,540

    Default

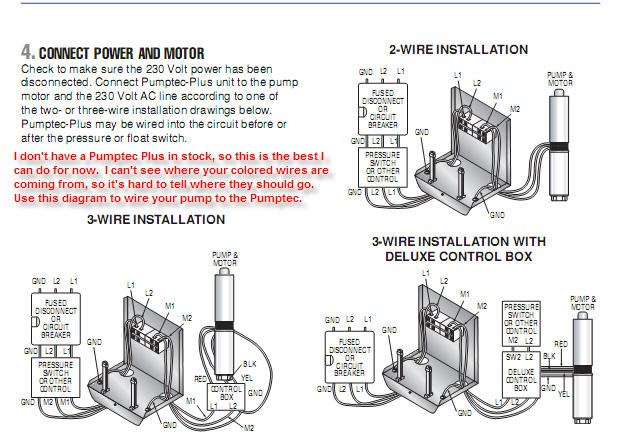

    The photo does not tell me where the wires come from, so I uploaded this pic for you to study.

    bob...
    Attached Images Attached Images
    Reply With Quote Reply With Quote
  11. 03-13-2008, 10:44 AM #11
    xtorq12
    xtorq12 is offline
    DIY Junior Member xtorq12's Avatar
    Join Date
    Aug 2006
    Posts
    13

    Default

    Thanks Bob, I have that diagram in the pic you posted. All I need to do is verify that the red, white, black wires in my pic are connected correctly. I searched the Franklin Electric web site but I was unable to find what I need. I'll wait a couple of days for an answer here, if none I'll try contacting Franklin Electric.
    Thanks for everyones help.
    Reply With Quote Reply With Quote
  12. 03-13-2008, 10:57 AM #12
    speedbump
    speedbump is offline
    Previous member
    Join Date
    Jul 2005
    Location
    Riverview, Fl.
    Posts
    4,540

    Default

    I don't think anyone can tell you if they are correct without seeing more in the picture.

    bob...
    Reply With Quote Reply With Quote
  13. 03-13-2008, 11:22 AM #13
    xtorq12
    xtorq12 is offline
    DIY Junior Member xtorq12's Avatar
    Join Date
    Aug 2006
    Posts
    13

    Default

    Quote Originally Posted by speedbump View Post
    I don't think anyone can tell you if they are correct without seeing more in the picture.

    bob...
    Well, I was hoping someone can look inside their Pumptec Plus (or upload a picture) and tell me if it's wired correctly. I would have to remove and disassemble the circuit board plastic cover to be able trace the wires. I can't do that at this point because I can still return it for a refund.
