    Question Bathroom layout

    We moved into a new home here a few months ago and Iím just starting to finish the basement. I started to frame it out and now Iím to the point the I need to figure out the layout of the bathroom so that I can frame it so a toilet, shower (or tub/shower) and vanity will fit. The problem is, I havenít a clue what the builders had in mind when the put these pipes in place. Also I will lose some space when I go to put a 2X4 wall up about an inch away from the concrete wall. Any ideas on how to figure out my framing?

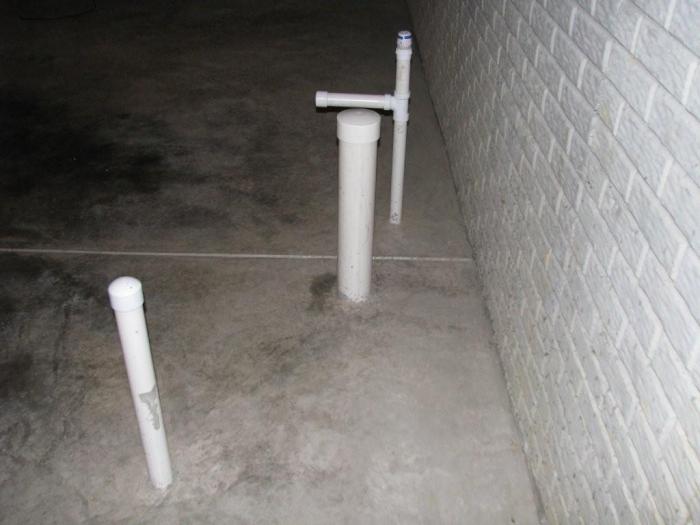

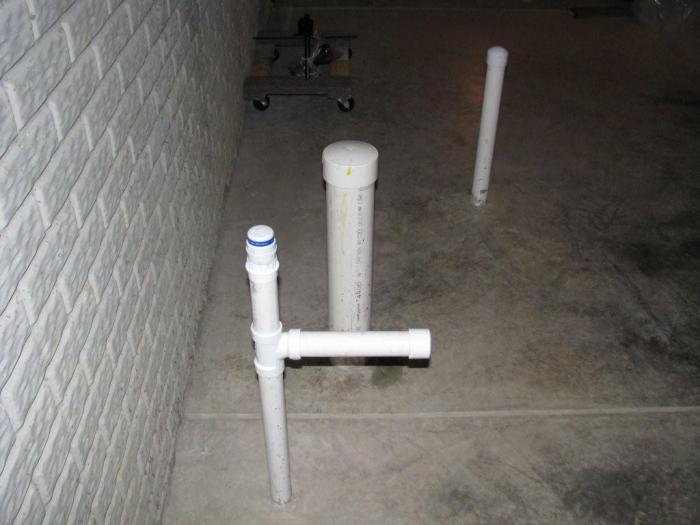

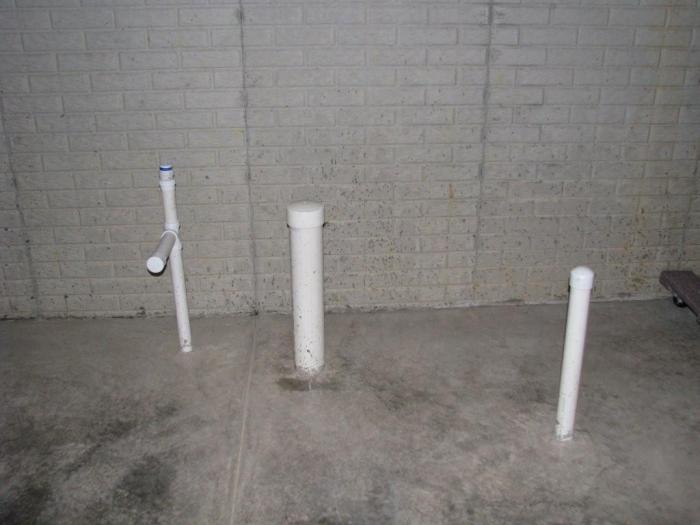

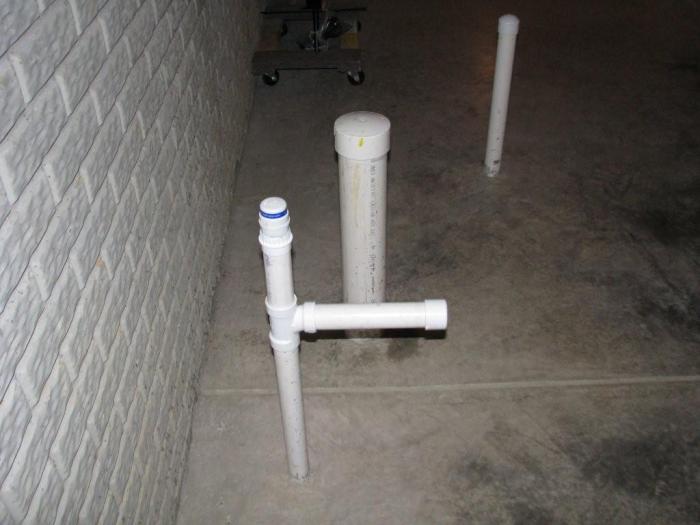

    Here are some pics to help out with the visual.

    The first T pipe is 9Ē away from concrete wall
    The toilet is 14Ē away from concrete wall
    The last is 35Ē away from wall
    Side to side from T pipe to toilet is 15.5Ē
    And between Toilet and outer pipe is 28Ē

    It seems to me that the T pipe and the toilet is to close together as well as to close to the wall (especially when you frame it out)

    Any help or direction would be gratefully appreciated!
    Attached Images Attached Images

  2. #2
    Master Plumber Redwood's Avatar
    Join Date
    Dec 2007
    Location
    Connecticut
    Posts
    7,463

    Default

    The toilet requires a 12 " rough in and 30" wide centered on the drain.
    Things aren't adding up too well as far as the lav sink and toilet go in any direction. I'm not too sure what the civil engineer overseeing the plumber was thinking...

  3. #3
    Retired Defense Industry Engineer jadnashua's Avatar
    Join Date
    Sep 2004
    Location
    New England
    Posts
    21,382

    Default

    To keep the toilet with a 12" rough-in, you could put strapping on the wall instead of building a standard studwall then install the drywall. If there are any electrical boxes on that wall, as long as you don't try to run lots of wires through any one, a shallow box should fit.

    Is the mid-sized pipe 1.5" or 2"? Looks like it might be 1.5". If so, you can only put in a tub unless you tear things out - code requires a 2" line for a shower only.

    There are no obvious vents, so that could also be a major problem. Each fixture should be vented. There are limits on wet venting - I don't know if what you have would work.
    Jim DeBruycker
    Important note - I'm not a pro
    Retired Defense Industry Engineer; Schluter 2.5-day Workshop Completed 2013, 2014

  4. #4
    Moderator & Master Plumber hj's Avatar
    Join Date
    Aug 2004
    Location
    Cave Creek, Arizona
    Posts
    25,615

    Default layout

    None of the pipes work for a conventional layout, so you will have to get creative with your wall placement. AAV's do not work good for lower level plumbing.

  5. #5

    Default

    Rent a jackhammer and put everything where you want it rather than settle and try to make that mess fit. Really, do it right and call the builder to ask him what the hell we was thinking when he did this or was he really thinking at all.
    http://www.inspectpa.com/forum/forum.php
    My answers are based mostly on the ICC codes. Advice given is my personal opinion and every person performing work should acquire a permit from his/her jurisdiction and get the work inspected. My opinions are not directions to follow for DIYs or professionals
